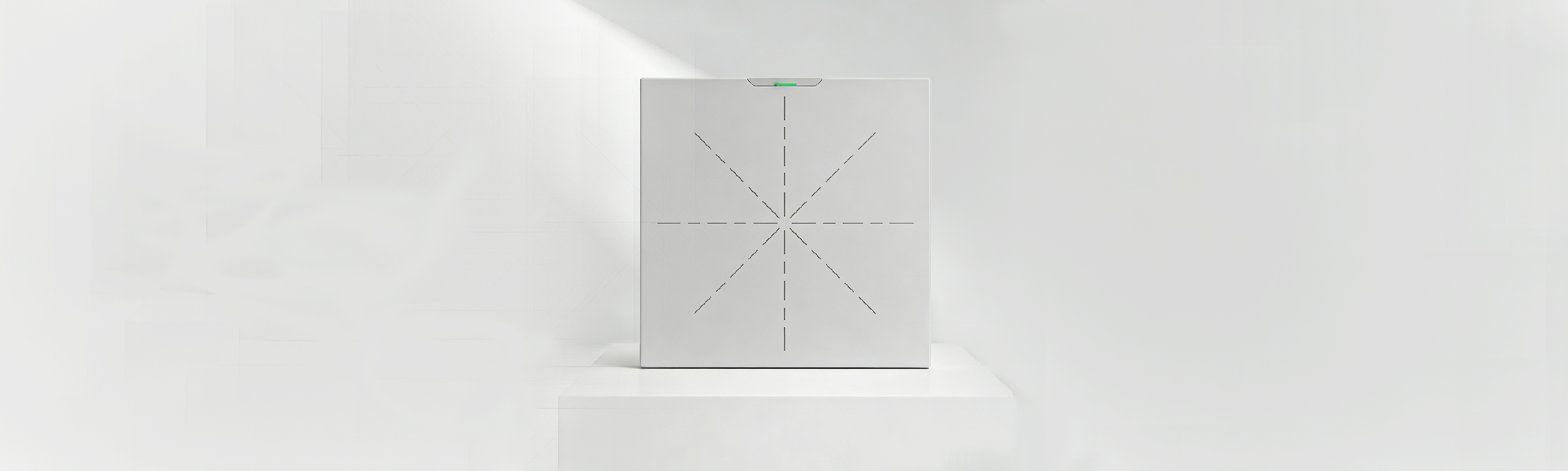

NA-600M

Array Microphone

• Matrix Microphone Array System: Uses advanced beamforming technology, supports omnidirectional pickup mode, effectively covers 100㎡ space, meets audio capture requirements of medium to large conference rooms
• High-Fidelity Audio Performance: Frequency response 80Hz-10kHz, sensitivity -38±1dBFS, SNR up to 70dB, maximum SPL 120dBSPL, ensures clear and realistic sound
• Professional Audio Processing: Supports 48kHz sampling rate and 16bit sampling bit depth, provides CD-level audio experience, ensures accurate audio signal reproduction
• Multi-protocol Compatibility: Supports USB Audio Class universal protocol, HTTP, RTSP and professional audio protocols AES67/AES70, achieving seamless system integration

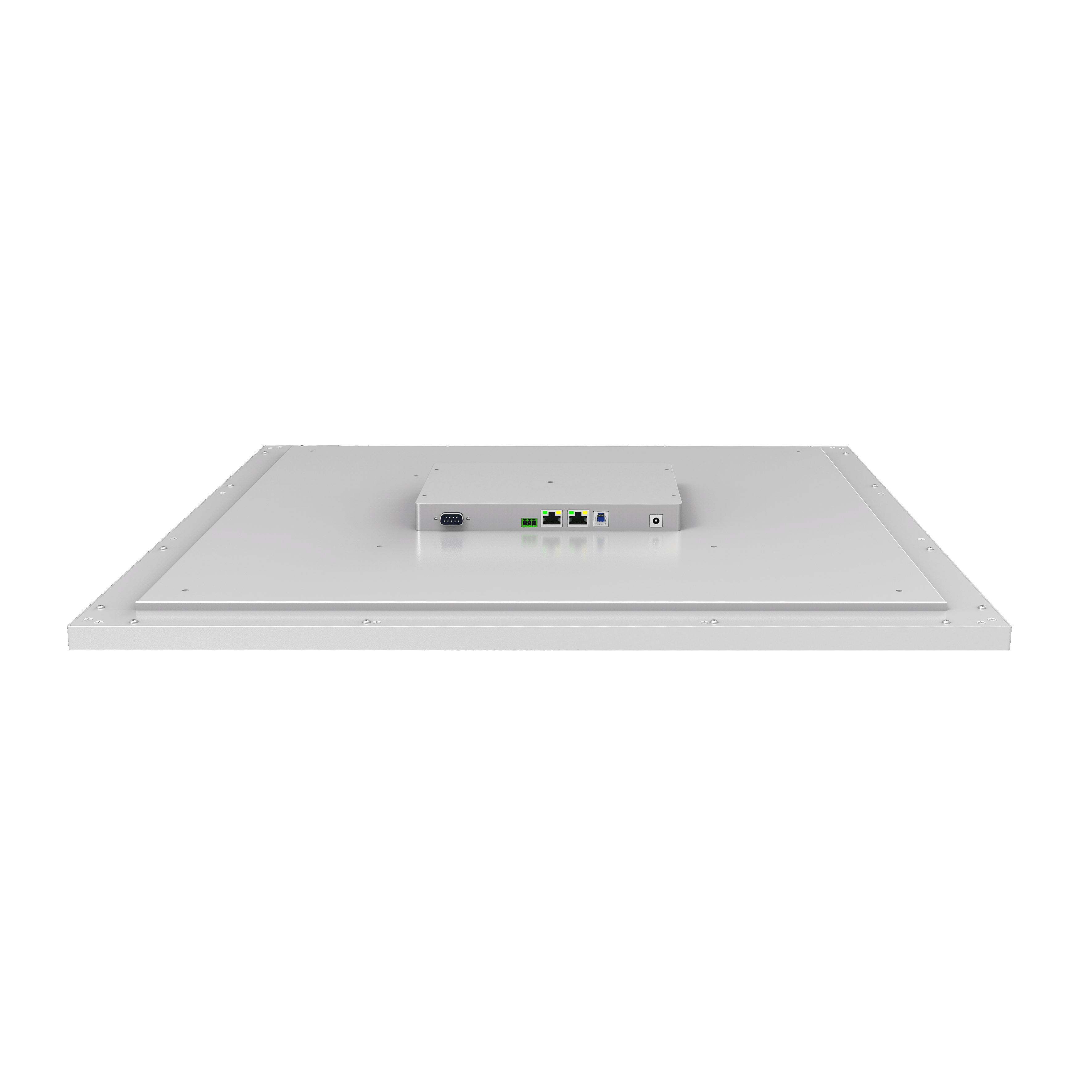

• Rich Interface Configuration: Equipped with PoE network port, standard LAN port, USB3.0, Line-out audio output, DC12V power and RS485 control interface, meets diverse connection requirements
• Convenient Installation Design: Built-in 4 suspension ring accessories, supports ceiling suspension mounting, 600mm×600mm standard size, easily adapts to various installation environments
• Simplified Deployment Experience: Supports PoE power, reduces wiring complexity, plug-and-play, significantly improves installation efficiency
