NV-PTZ200

Network PTZ Camera

NV-PTZ200

Product Overview

12× 4K30 72.5°

Product Features

Main features include

  • 4K Ultra HD Display: Utilizes the latest generation SONY 1/2.8-inch high-quality CMOS, capable of outputting maximum 4K30 ultra HD resolution video, ideal for larger scene recording
  • 12x Optical Zoom Lens: Equipped with 12x optical telephoto lens, supporting mainstream horizontal viewing angle of 72.5°, meeting diverse remote conferencing scenario requirements
  • Multiple Video Output Interfaces: USB3.0+HDMI+IP triple interfaces, compatible with all current mainstream video output interfaces, HDMI+USB3.0 can simultaneously output 4K30 resolution
  • Low Light Performance: New ultra-high SNR CMOS image sensor effectively reduces image noise in low light conditions. Simultaneously applies 2D&3D digital noise reduction, significantly reducing image noise. Even under extremely low light conditions, maintains clean, clear images with SNR higher than 45dB
  • IR Remote Control Signal Passthrough: Can receive consumer IR remote control signals in addition to its own, transmitting signals via VISCA port to video conferencing terminal
  • Multiple Video Compression Standards: Different interfaces support YUY2, H265, MJPG, H264 and other video compression formats
  • Multiple Network Protocols: Supports ONVIF, SRT, RTSP, RTMP, and other network protocols
  • Multiple Control Protocols: Supports VISCA (including VISCA Over IP), PELCO P/D protocols with automatic protocol recognition

Product Specifications

Technical parameter details:

Image Sensor SONY 1/2.8-inch CMOS
Maximum Resolution 4K30 (3840×2160@30fps)
Optical Zoom 12x
Horizontal Viewing Angle 72.5°

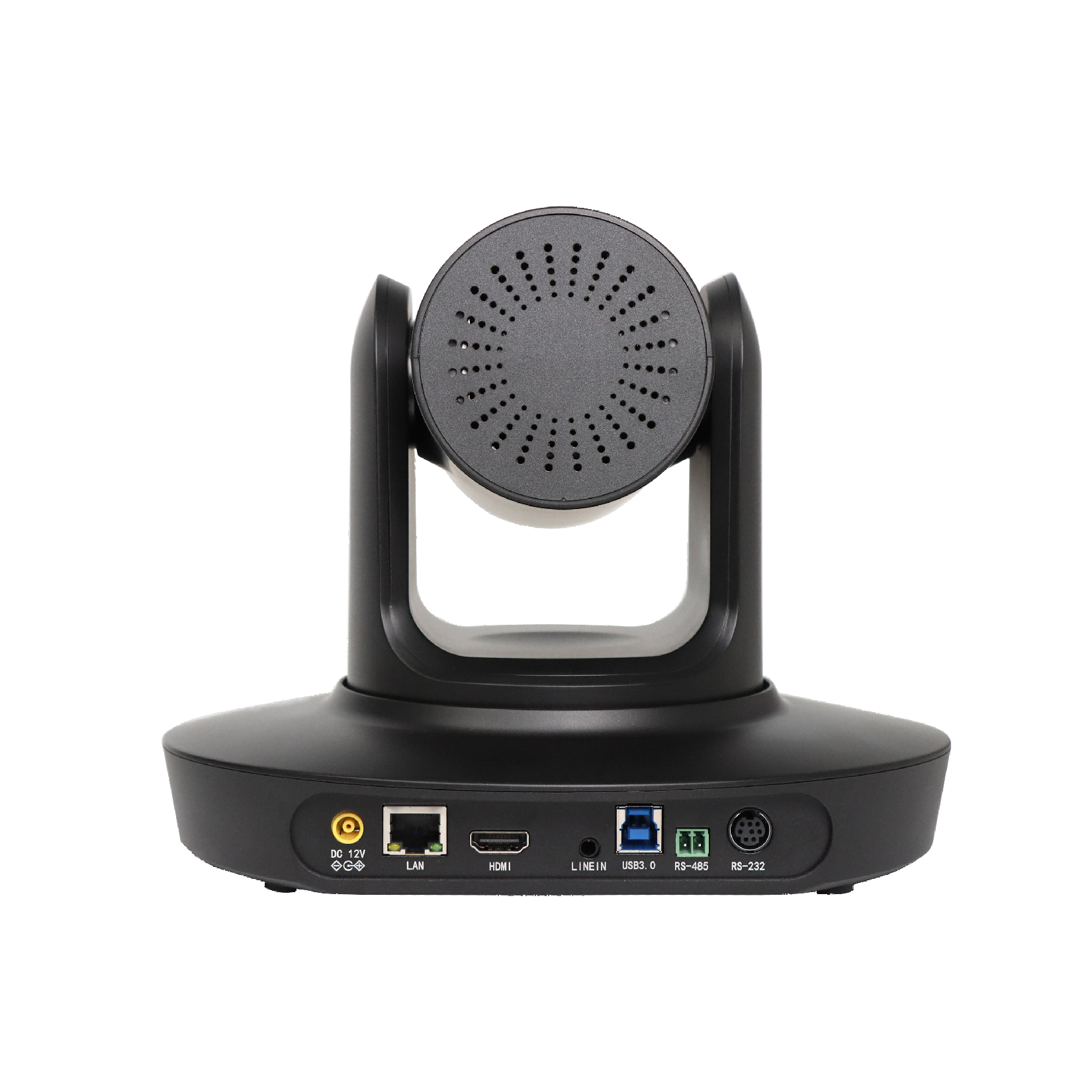

Video Output Interface USB3.0+HDMI+IP
Simultaneous Output Capability HDMI+USB3.0 simultaneous 4K30 output
Image SNR >45dB
Noise Reduction Technology 2D&3D Digital Noise Reduction
IR Function Supports IR remote control signal passthrough transmission via VISCA port
Video Compression Format YUY2、H265、MJPG、H264
Network Protocol ONVIF、SRT、RTSP、RTMP
Control Protocol VISCA (including VISCA Over IP), PELCO P/D with automatic recognition
