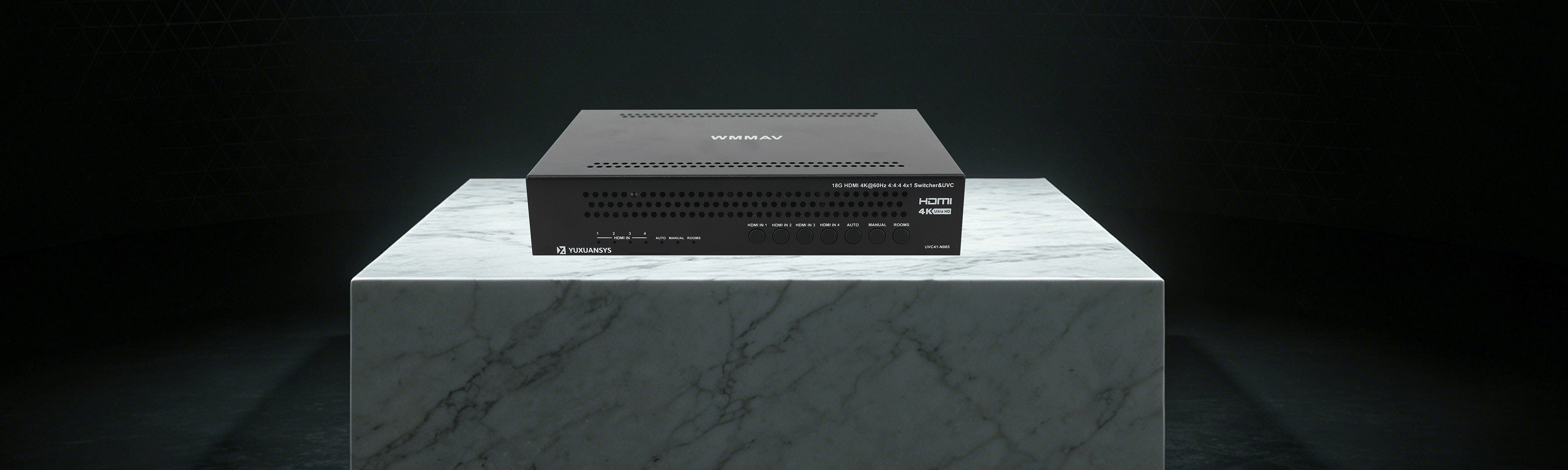

UVC41-N001
ROOMS host or combined with PC or desktop plug-in
Product Overview
ROOMS host or combined with PC
Product Features
Main features include
- Intelligent Video Signal Auto-Switching: Designed specifically for ROOMS video conference systems, supports auto-switching LIFO mode and ROOMS dedicated switching mode, ensures seamless conference video signal switching
- Multi-Channel HD Signal Interface: Equipped with 4 HDMI inputs and 1 HDMI output, supports up to 4K@60Hz 4:4:4 8bit resolution, simultaneously provides audio de-embedding function
- Multi-Function USB Expansion: Integrated 4 USB2.0-A interfaces, 2 dedicated for system functions, 2 supporting peripheral connection, achieves plug-and-play and conference software compatibility for devices like cameras, microphones
- Full Platform Conference Software Compatibility: Perfectly supports mainstream video conference platforms like Tencent Meeting, Feishu Meeting, ZOOM, Teams, supports UVC protocol access
- Powerful Ecosystem Integration: Can seamlessly connect with 10-key POE panels, 4/7/10 inch POE touch screens, building complete conference control systems
- Advanced Programming Control Capability: Supports JavaScript script writing, users can build custom function modules, achieves multi-user, cross-platform, distributed control, meets complex scenario requirements

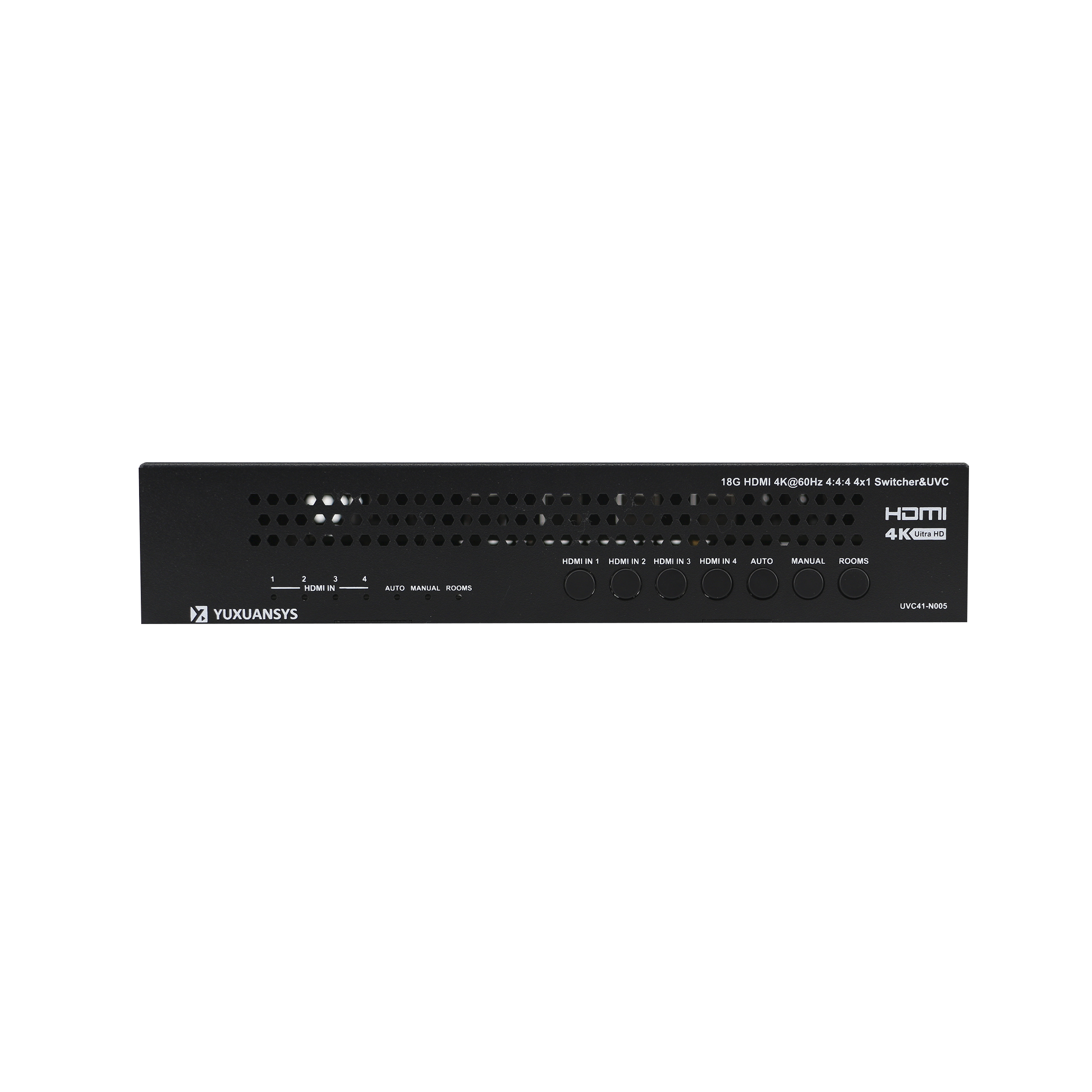

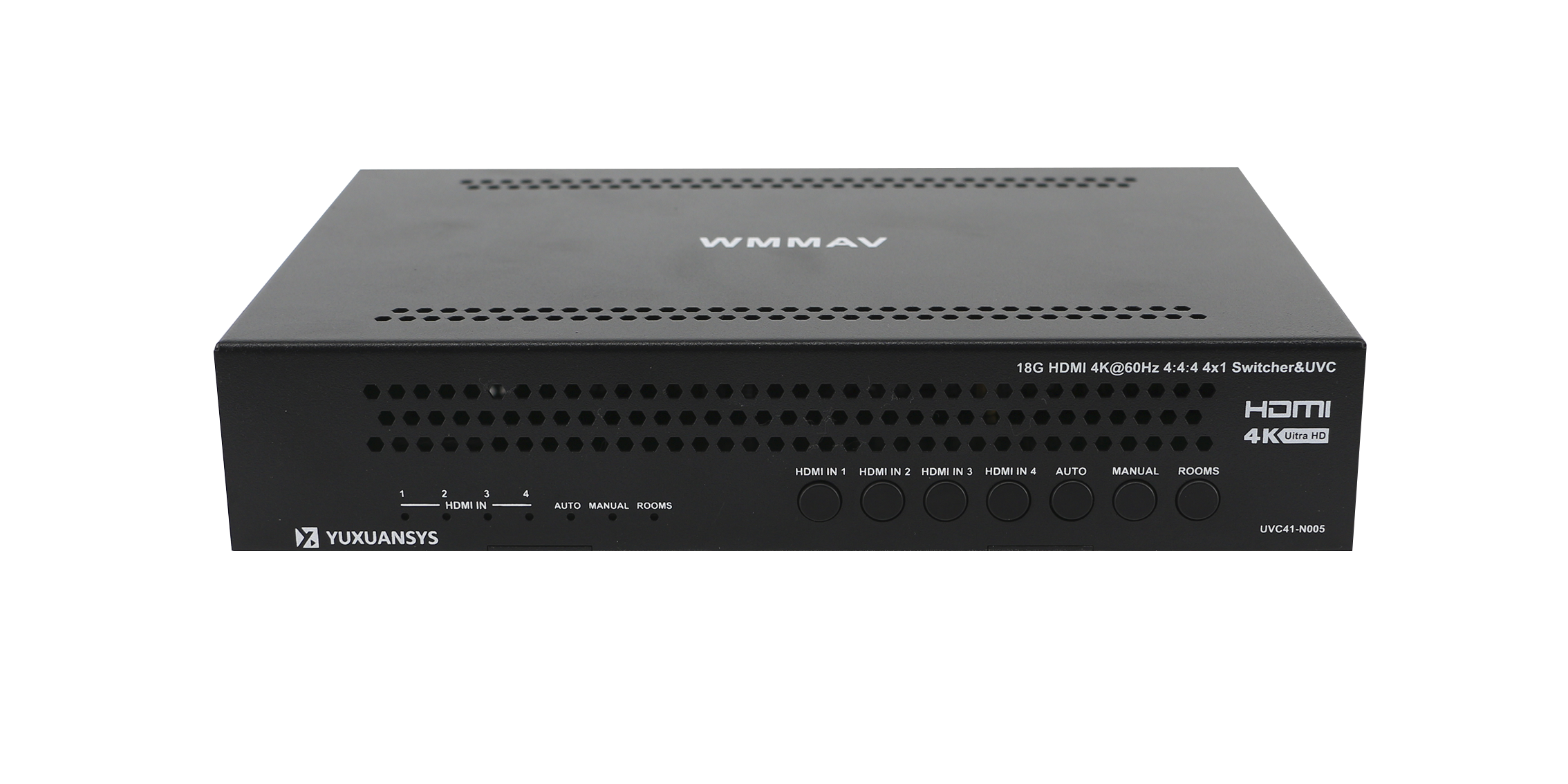

- Diverse Control Methods: Provides mouse control, hotkey switching, front panel buttons, remote control and other operation methods, and offers open API interfaces supporting third-party system integration
- High-Performance Hardware Platform: Developed based on HiSilicon platform, features high versatility and expandability, supports 4 HOST sharing with accompanying HDMI switching
Product Specifications
Technical parameter details:
| Product Type | ROOMS Video Conference Host Video Signal Auto Switcher |
| HDMI Input | 4 channels, maximum supports 4K@60Hz 4:4:4 8bit |
| HDMI Output | 1 channel, maximum supports 4K@60Hz 4:4:4 8bit |
| Audio Output | 1 audio de-embedded output |
| USB Interface | 4×USB2.0-A (2 system functions+2 peripheral expansion) |
| Switching Mode | Auto-switching LIFO mode, ROOMS dedicated switching mode |
| HOST Sharing | Supports 4 HOST sharing, HDMI switching accompanies HOST switching |
| Conference Platform Compatibility | Tencent Meeting, Feishu Meeting, ZOOM, Teams, etc. |
| Ecosystem compatibility | 10-key POE panel, 4/7/10 inch POE touch screen |
| Control Method | Mouse control, hotkey switching, front panel buttons, remote control |
| Programming Support | JavaScript scripting, user-built function modules |
| System Architecture | Based on HiSilicon platform |
| API Interface | Open API supports third-party integration |
| Control Expansion | Supports multi-user, cross-platform, distributed control |
